News

NEW! Insulation Monitoring device IM-04PV for Photovoltaic applications – now with voltage measurement!

Trafox Superintend® IM-04PV

NEW! NOW WITH VOLTAGE MEASUREMENT!

  • Immune against disturbances (clouds and frequency disturbances), FFT
  • For voltages up to 1500 VDC with high voltage couplers
  • Quality and reliability from Finland
  • Suitable also for other AC and DC high voltage systems
  • NEW! Measurement of system voltage

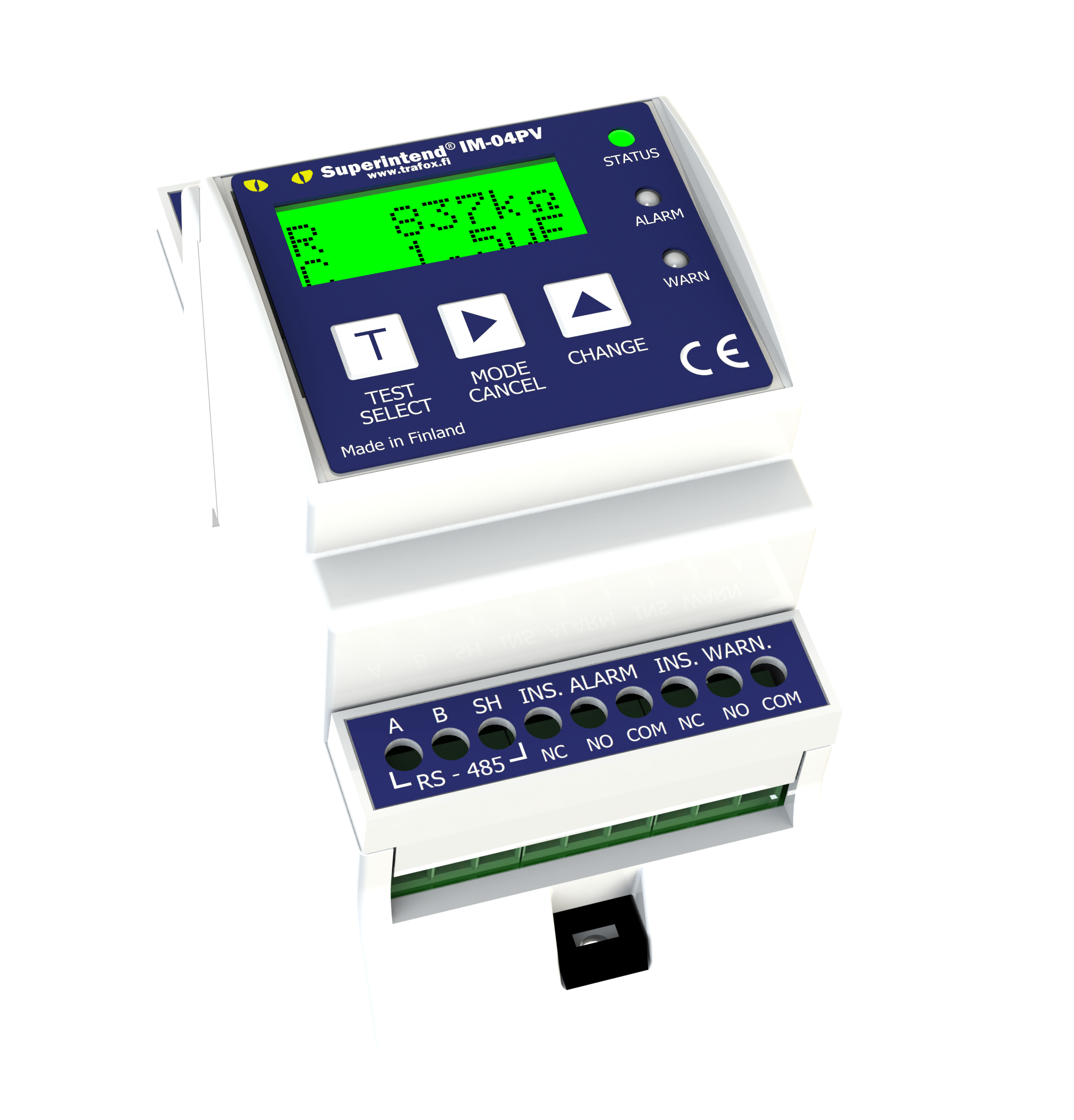

 IM-04PV



Line Insulation Monitoring device IM-04PV

Download the brochure here:
IM-04PV for Photovoltaic Applications, ENG (pdf)

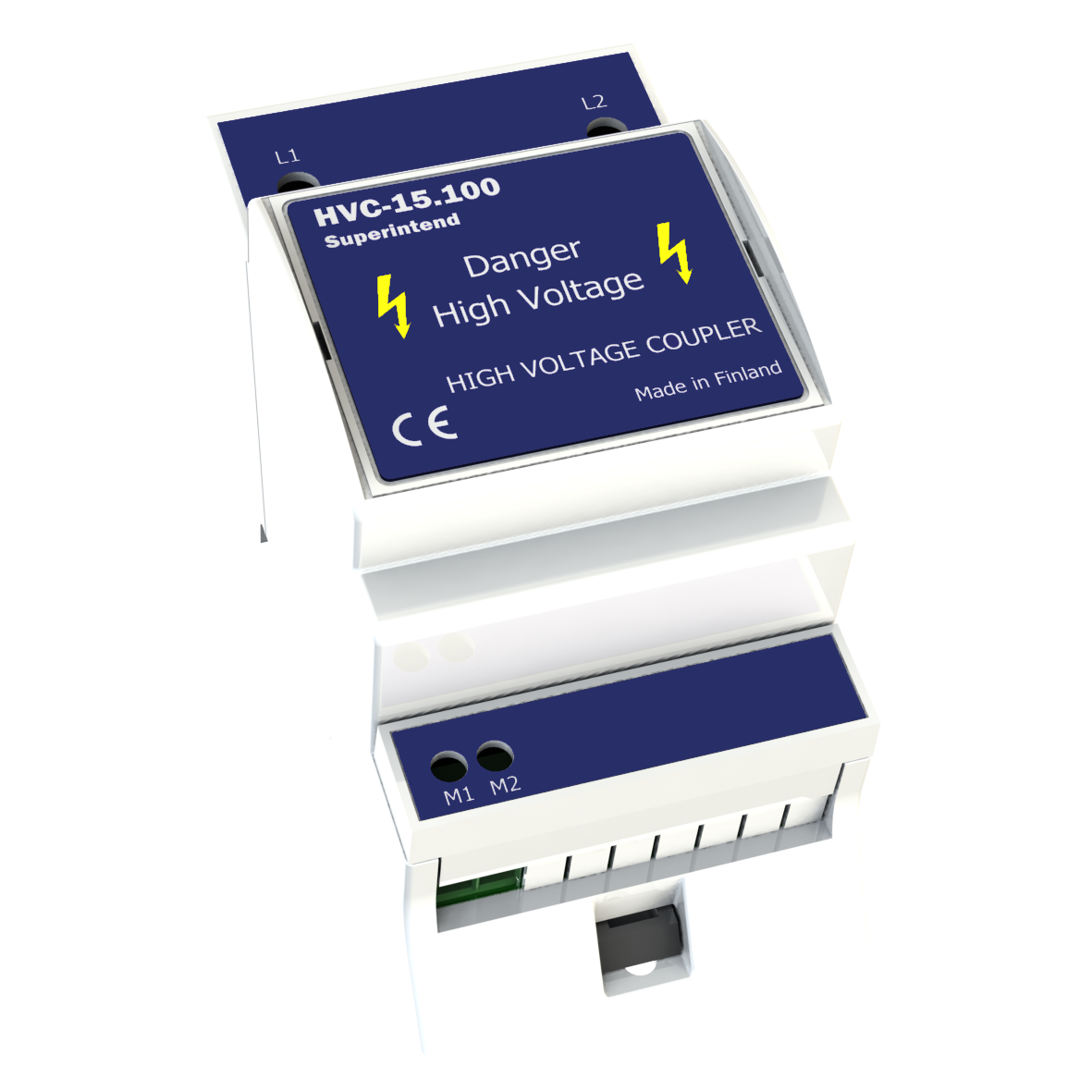

 HVC-15.100



High voltage coupler 1500VDC
Resistance measurement range: 5kΩ…1MΩ With better than 15% accuracy.
Capacitance measurement range: 1 uF…100 uF

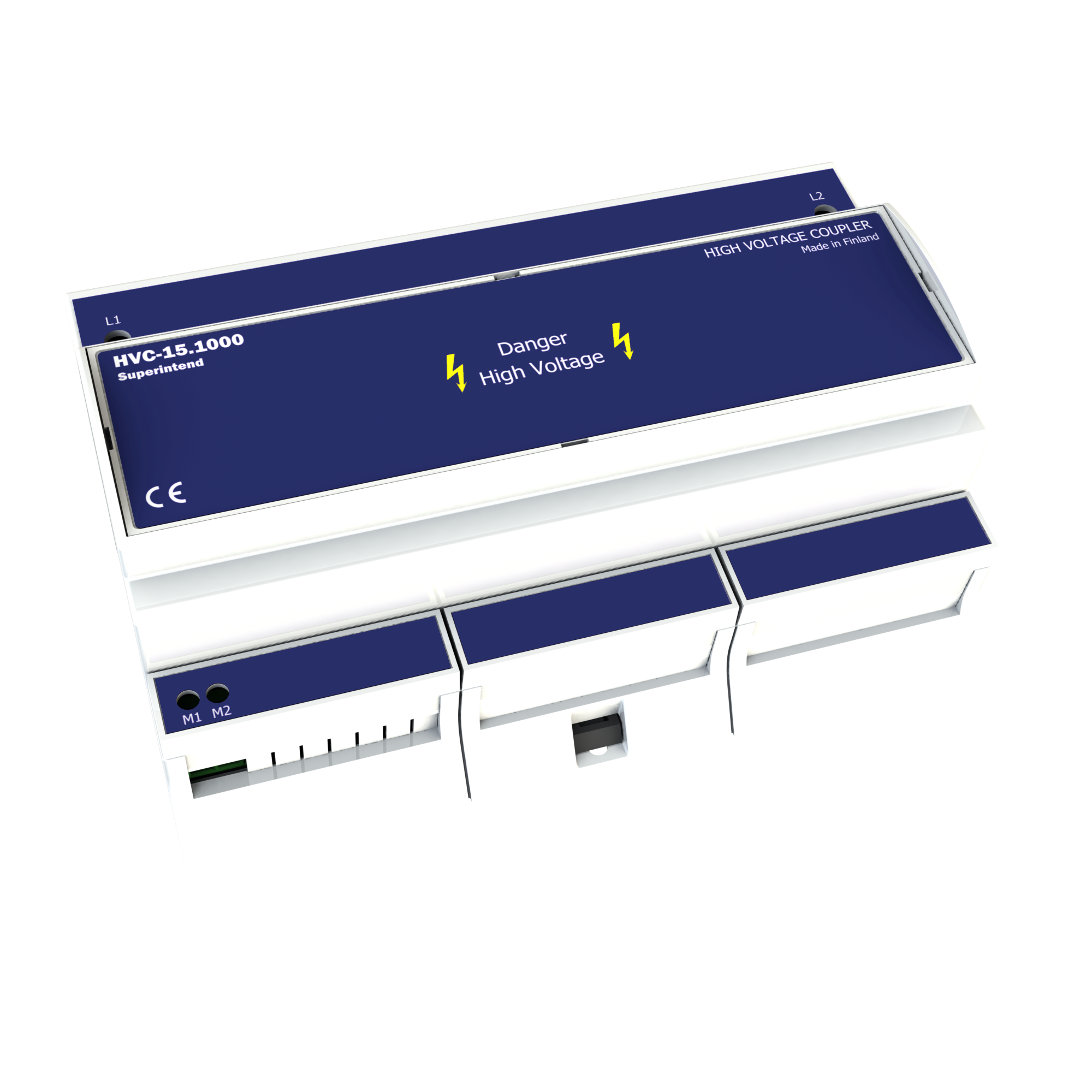

HVC-15.1000

High voltage coupler 1500VDC
Resistance measurement range: 10kΩ…1MΩ With better than 15% accuracy.
Capacitance measurement range:
1 uF…1000 uF.
HVC-15.2000

High voltage coupler 1500VDC
Resistance measurement range: 10kΩ…1MΩ With better than 15% accuracy.
Capacitance measurement range: 1 uF…2000 uF.
IM-01PV





High end unit for PV applications!



To find out more information about these new products, please visit IMD Insulation Monitoring devices websites or contact sales@trafox.fi.

You can also download the brochure from here:  IM-04PV for Photovoltaic Applications, ENG (pdf)

« Back to news
