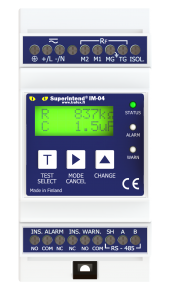

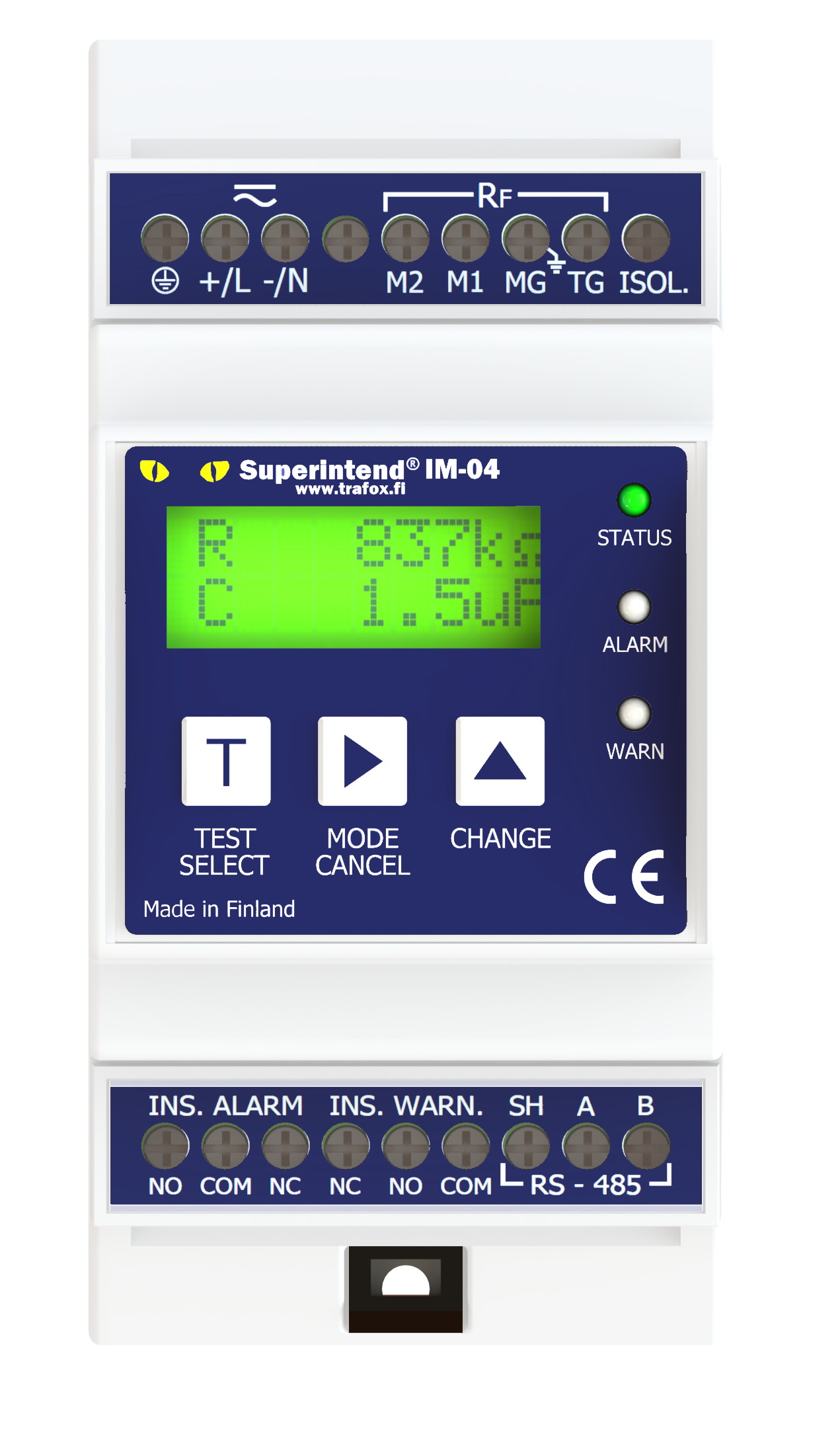

• UL certified
• Designed to be used in demanding environments
• Measures the insulation resistance and capacitance of AC/DC networks
• Detects also symmetrical insulation faults
• Suitable for different application fields, for example
•      Electric vehicle DC charging stations
•      DC networks
• Nominal system voltage 0…1000 VDC
• N/C and N/O selectable
• Modbus RTU
• Automatic adaptation to the system leakage capacitance up to 5 uF
• Selectable start-up delay
• According to the standard IEC 61851-23

Download the IM-04DCCT product sheet from here, ENG (pdf)

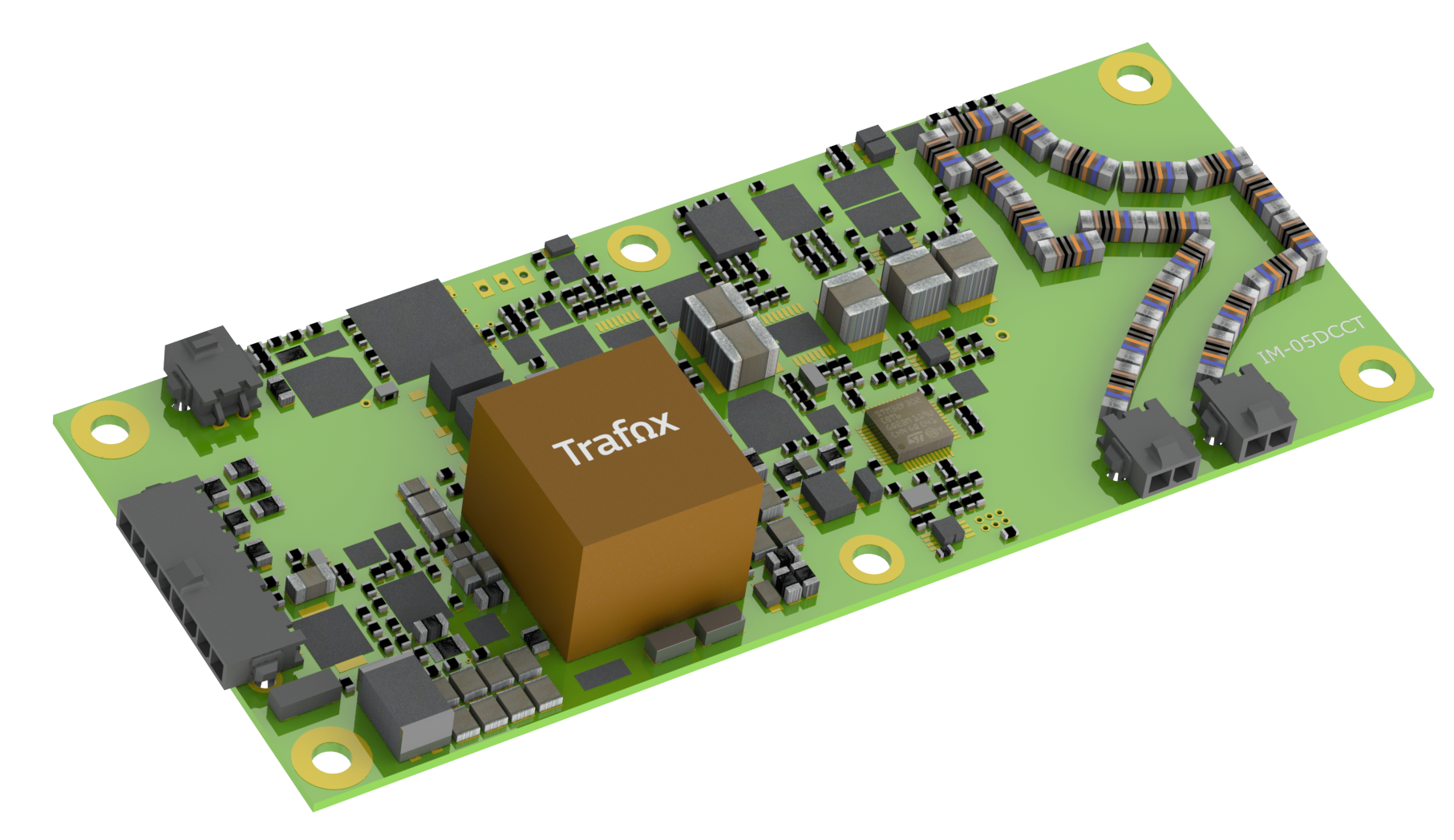

• UL certified
• For voltages up to 1000 VDC / 690 VAC
• Monitoring of system voltage
• Short circuit proof and galvanically isolated outputs for system status
  • system OK or alarm
  • indication of insulation resistance with PWM signal
• CAN bus interface

Download the IM-05DCCT product sheet from here (pdf)
